EBARA SF6 Series ปั๊มบาดาล
ปั๊มบาดาล EBARA SF6 Series เป็นปั๊มหอยโข่งหลายใบพัดขนาด 6 นิ้ว ออกแบบมาสำหรับการสูบน้ำสะอาดจากบ่อบาดาล เหมาะสำหรับการใช้งานในระบบประปา การเพิ่มแรงดันน้ำ และการชลประทานในภาคเกษตรกรรม
นโยบายตัวอย่าง: กรุณาติดต่อเราเพื่อสอบถามข้อมูลเกี่ยวกับนโยบายตัวอย่างของเรา
ปั๊มบาดาล EBARA SF6 Series เป็นปั๊มหอยโข่งหลายใบพัดขนาด 6 นิ้ว ผลิตจากสแตนเลสสตีล AISI 304 มีน้ำหนักเบา ทำให้สะดวกต่อการขนย้ายและติดตั้ง สามารถเชื่อมต่อกับมอเตอร์ที่ระบายความร้อนด้วยน้ำหรือน้ำมันได้ เหมาะสำหรับการสูบน้ำสะอาดจากบ่อบาดาล การเพิ่มแรงดันน้ำในระบบประปา และการชลประทานในภาคเกษตรกรรม
| PUMP | ||||||
|---|---|---|---|---|---|---|
| Liquid Handled | Type of liquid | Clean water | ||||
| Temperature [°C] | max. +30 | |||||
| Max sand content | 50 parts per million | |||||
| Chlorine ion density | 500 parts per million | |||||
| Construction | Impeller | Close centrifugal type | ||||
| Bearing | Sleeve type – PA/Rubber | |||||
| Pipe Connection | Suction [mm] | n/a | ||||
| Discharge | G3” (S25-S32-S42) UNI ISO 228 | |||||
| Material | Casing | PPE+PS glass fibre reinforced | ||||
| Impeller | PPE+PS glass fibre reinforced | |||||
| Suction | AISI 304 (EN 1.4301) | |||||
| Discharge | AISI 304 (EN 1.4301) | |||||
| Wear ring | AISI 304 (EN 1.4301) | |||||
| Shaft | AISI 420 (EN 1.4021) | |||||
| Valve | AISI 304 (EN 1.4301) | |||||
| Strain | AISI 304 (EN 1.4301) | |||||
| Applicable standard of test | ISO 9906 – Annex A | |||||
| MOTOR | ||||||
|---|---|---|---|---|---|---|
| Type | Submersible oil filled (type O) | Submersible water filled (type W) | ||||
| Three Phase | ||||||
| Size | 4” | 6” | 4” | 6” | ||
| No. of Poles | 2 | |||||
| [min-1] Rotation speed | Refer to each characteristic performance rotation speed as rated speed | |||||
| Insulation Class | F | B | F | |||
| Protection degree | IP 58 | IP 68 | IP 58 | |||
| Power rating | [kW] | 2.2 ÷ 5.5 | 7.5 ÷ 30 | 2.2 ÷ 5.5 | 7.5 ÷ 30 | |
| [HP] | 3.0 ÷ 7.5 | 10 ÷ 40 | 3.0 ÷ 7.5 | 10 ÷ 40 | ||
| Maximum immersion [m] | 100 | 350 | ||||
| Starts / hours | 25 | 20 | ||||
| Start type | Direct on line | |||||
| Frequency [Hz] | 50 | |||||
| Voltage [V] | 380-400 ±10% | 380-415 -10% +6% | ||||
| Over load protection | Provided by the user | |||||
| Casing material | AISI 304 (EN 1.4301) | |||||
| Motor support | Brass | Cast iron with nickel plate | AISI 304 (EN 1.4301) | Cast iron with epoxy painted | ||
| Flange mount | NEMA | |||||

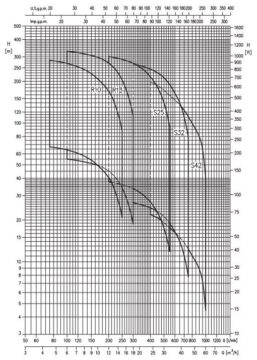

| Pump type | Motor size | [kW] | [HP] | Q=Capacity | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min 0 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 550 | 600 | 700 | 750 | 800 | 900 | 1000 | ||||
| m3/h 0 | 4,5 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 33 | 36 | 42 | 45 | 48 | 54 | 60 | ||||
| H=Total manometric head in meters | |||||||||||||||||||
| R10 5 | 4″ | 2,2 | 3 | 76 | 67 | 64 | 54 | 40,5 | 20,5 | – | – | – | – | – | – | – | – | – | – |
| R10 6 | 3 | 4 | 91,5 | 80 | 77 | 65 | 49 | 24,6 | – | – | – | – | – | – | – | – | – | – | |
| R10 7 | 107 | 93,5 | 89,5 | 75,5 | 57 | 28,7 | – | – | – | – | – | – | – | – | – | – | |||
| R10 8 | 4 | 5.5 | 122 | 107 | 102 | 86 | 65 | 32,8 | – | – | – | – | – | – | – | – | – | – | |
| R10 9 | 137 | 120 | 115 | 97 | 73 | 36,9 | – | – | – | – | – | – | – | – | – | – | |||
| R10 12 | 5.5 | 7.5 | 183 | 160 | 153 | 130 | 97 | 49 | – | – | – | – | – | – | – | – | – | – | |
| R10 15 | 6″ | 7.5 | 10 | 229 | 200 | 192 | 162 | 122 | 61,5 | – | – | – | – | – | – | – | – | – | – |
| R10 18 | 9.2 | 12.5 | 274 | 240 | 230 | 194 | 146 | 74 | – | – | – | – | – | – | – | – | – | – | |
| R10 21 | 320 | 280 | 268 | 227 | 170 | 86 | – | – | – | – | – | – | – | – | – | – | |||
| R13 5 | 3 | 4 | 73,5 | – | 68 | 64 | 56 | 43 | 23 | – | – | – | – | – | – | – | – | – | |
| R13 6 | 4 | 5.5 | 88 | – | 82 | 77 | 67,5 | 51 | 27,5 | – | – | – | – | – | – | – | – | – | |
| R13 7 | 5.5 | 7.5 | 103 | – | 95,5 | 89,5 | 79 | 60 | 32 | – | – | – | – | – | – | – | – | – | |
| R13 8 | 118 | – | 109 | 102 | 90 | 68 | 36,8 | – | – | – | – | – | – | – | – | – | |||
| R13 9 | 132 | – | 123 | 115 | 101 | 77 | 41 | – | – | – | – | – | – | – | – | – | |||
| R13 12 | 6″ | 7.5 | 10 | 177 | – | 164 | 153 | 135 | 102 | 55 | – | – | – | – | – | – | – | – | – |
| R13 15 | 9.2 | 12.5 | 221 | – | 205 | 192 | 169 | 128 | 69 | – | – | – | – | – | – | – | – | – | |
| R13 18 | 11 | 15 | 265 | – | 246 | 230 | 203 | 153 | 83 | – | – | – | – | – | – | – | – | – | |
| R13 21 | 15 | 20 | 309 | – | 287 | 268 | 237 | 179 | 97 | – | – | – | – | – | – | – | – | – | |
| R13 24 | 353 | – | 328 | 307 | 270 | 205 | 111 | – | – | – | – | – | – | – | – | – | |||
| S25 3 | 4″ | 3 | 4 | 46 | – | – | – | 37,8 | 35,8 | 33,7 | 26,9 | 17,6 | 11,9 | – | – | – | – | – | – |
| S25 4 | 4 | 5.5 | 61,5 | – | – | – | 50 | 48 | 45 | 35,9 | 23,4 | 15,8 | – | – | – | – | – | – | |
| S25 6 | 5.5 | 7.5 | 92 | – | – | – | 75,5 | 71,5 | 67,5 | 54 | 35,1 | 23,8 | – | – | – | – | – | – | |
| S25 8 | 6″ | 7.5 | 10 | 123 | – | – | – | 101 | 95,5 | 90 | 72 | 47 | 31,7 | – | – | – | – | – | – |
| S25 10 | 9.2 | 12.5 | 153 | – | – | – | 126 | 119 | 112 | 90 | 58,5 | 39,6 | – | – | – | – | – | – | |
| S25 12 | 11 | 15 | 184 | – | – | – | 151 | 143 | 135 | 108 | 70 | 47,5 | – | – | – | – | – | – | |
| S25 14 | 15 | 20 | 215 | – | – | – | 176 | 167 | 157 | 126 | 82 | 55,5 | – | – | – | – | – | – | |
| S25 16 | 245 | – | – | – | 201 | 191 | 180 | 144 | 94 | 63 | – | – | – | – | – | – | |||
| S25 20 | 18.5 | 25 | 307 | – | – | – | 252 | 239 | 225 | 179 | 117 | 79 | – | – | – | – | – | – | |
| S25 24 | 22 | 30 | 368 | – | – | – | 302 | 286 | 269 | 215 | 141 | 95 | – | – | – | – | – | – | |
| S32 2 | 4″ | 3 | 4 | 30,4 | – | – | – | – | – | 26,5 | 24,5 | 21,2 | 19 | 16,4 | 11,1 | 7,8 | – | – | – |
| S32 3 | 4 | 5.5 | 45,5 | – | – | – | – | – | 39,7 | 36,7 | 31,8 | 28,5 | 24,7 | 16,6 | 11,7 | – | – | – | |
| S32 4 | 5.5 | 7.5 | 61 | – | – | – | – | – | 53 | 49 | 42,5 | 38 | 32,9 | 22,2 | 15,6 | – | – | – | |
| S32 5 | 6″ | 7.5 | 10 | 76 | – | – | – | – | – | 66 | 61 | 53 | 47,5 | 41 | 27,7 | 19,5 | – | – | – |
| S32 6 | 9.2 | 12.5 | 91 | – | – | – | – | – | 79,5 | 73,5 | 63,5 | 57 | 49 | 33,3 | 23,4 | – | – | – | |
| S32 8 | 11 | 15 | 122 | – | – | – | – | – | 106 | 98 | 85 | 76 | 66 | 44 | 31,2 | – | – | – | |
| S32 9 | 15 | 20 | 137 | – | – | – | – | – | 119 | 110 | 95,5 | 85,5 | 74 | 50 | 35,1 | – | – | – | |
| S32 10 | 152 | – | – | – | – | – | 132 | 122 | 106 | 95 | 82 | 55,5 | 39 | – | – | – | |||
| S32 12 | 18.5 | 25 | 183 | – | – | – | – | – | 159 | 147 | 127 | 114 | 99 | 66,5 | 47 | – | – | – | |
| S32 15 | 22 | 30 | 228 | – | – | – | – | – | 199 | 183 | 159 | 142 | 123 | 83 | 58,5 | – | – | – | |
| S32 18 | 30 | 40 | 274 | – | – | – | – | – | 238 | 220 | 191 | 171 | 148 | 100 | 70 | – | – | – | |
| S32 20 | 304 | – | – | – | – | – | 265 | 245 | 212 | 190 | 164 | 111 | 78 | – | – | – | |||
| S42 4 | 6″ | 7.5 | 10 | 50,5 | – | – | – | – | – | – | 44 | 38,3 | 35,3 | 32,6 | 27,5 | 24,8 | 22,1 | 17,7 | 8,9 |
| S42 5 | 9.2 | 12.5 | 63 | – | – | – | – | – | – | 55 | 48 | 44 | 41 | 34,3 | 31 | 27,6 | 22,1 | 11,2 | |
| S42 6 | 11 | 15 | 76 | – | – | – | – | – | – | 66 | 57,5 | 53 | 59 | 41 | 37,2 | 33,2 | 26,6 | 13,4 | |
| S42 8 | 15 | 20 | 101 | – | – | – | – | – | – | 87,5 | 77 | 70,5 | 65 | 55 | 49,5 | 44 | 35,4 | 17,9 | |
| S42 9 | 114 | – | – | – | – | – | – | 98,5 | 86 | 79 | 73,5 | 62 | 56 | 50 | 39,8 | 20,1 | |||
| S42 10 | 18.5 | 25 | 126 | – | – | – | – | – | – | 109 | 96 | 88 | 82 | 69 | 62 | 55 | 44 | 22,4 | |
| S42 12 | 22 | 30 | 152 | – | – | – | – | – | – | 131 | 115 | 106 | 98 | 82 | 74 | 66 | 53 | 26,8 | |
| S42 15 | 30 | 40 | 190 | – | – | – | – | – | – | 164 | 144 | 132 | 122 | 103 | 93 | 83 | 66 | 33,6 | |
| S42 18 | 227 | – | – | – | – | – | – | 197 | 172 | 159 | 147 | 124 | 111 | 99,5 | 80 | 40 | |||
